Multi-port Process Valve
Component Palette Icon:
The Multi-port process valve component appearance is configurable by providing a configuration value for the de-activated and activated position states.
A component that looks like a multi-port process valve symbol. Full menu of style options is available for text, background, margin and padding, border, shape and miscellaneous. You can also specify a style class.
De-coding the configuration value
The valve component concise of two parts which we shall call v1 and v2.
v1 represents the top part, and v2 the bottom part.
v1 is always displayed, and is used to represent two and three port valves. v2 is selectable, and together with v1, is used to represent multi-port and multi-port mix-proof process valves.
The visulisation of each dynamic valve component element depends on the boolean state of it's associated bit of the active or deactivate configuration value.
Therefore, the configuration value is the sum of all true bit weightings required for each position state visulisation.
Element Bit Positions
Properties
Most Properties have binding options. For more information on Bindings, see Types of Bindings in Perspective. This section only documents the Props Category of properties. The other Categories are described on the Perspective Component Properties page.
| Name | Description | Property Type |
|---|---|---|
| processObject | The root of all processOject properties | object |
| showLabel | Show item identifier | boolean |
| labelPosition | Options for the location of the item identifier label. Options are: - left - right - top-left - top-right - bottom-left - bottom-right | string dropdown |
Tag Drop

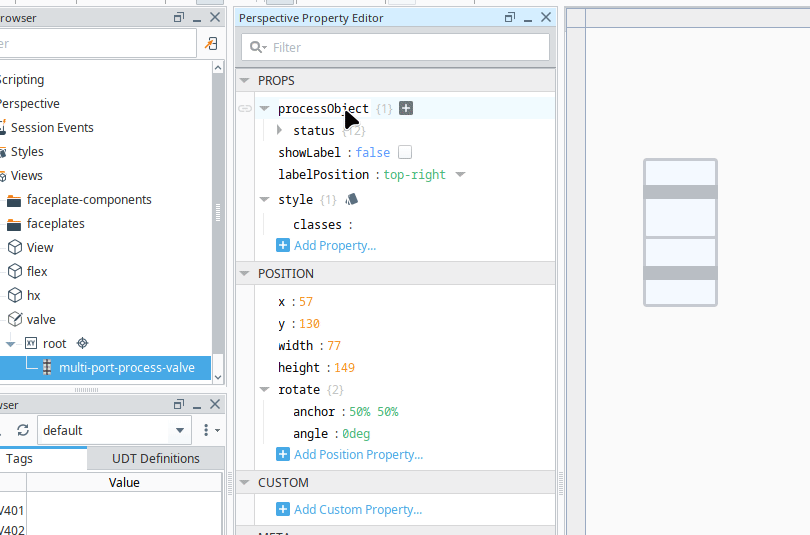

For user convenience a tag of data type process-object-valve-mp may be dragged and dropped on to the processOject property
processObject Properties
status
| Name | Description | Property Type |
|---|---|---|
| status | Status properties of the valve processOject. Child of the processObject property | object |
status Properties
| Name | Description | Property Type |
|---|---|---|
| itemName | Item identifier | string |
| activatedConfig | Defines appearence of valve component in the activated state | number |
| deactivatedConfig | Defines appearence of valve component in the de-activated state | number |
| alarm | Enable indication of alarm state | boolean |
| actFB | Enable indication of actFB state | boolean |
| deActFB | Enable indication of deActFB state | boolean |
| usl | Enable indication of upper-seat lift activated state | boolean |
| lsl | Enable indication of lower-seat lift activated state | boolean |
| manual | Enable indication of manual state | boolean |
| masked | Enable indication of masked state | boolean |
| changing | Enable indication of changing state | boolean |
| locate | Enable locate animation | boolean |
Component Events
The component supports the "Action Performed Event".
Further information regarding the Action Performed Event can be found a the Perspective Event Types Reference page. The Component Events and Actions page shows how to configure events and actions on a Perspective component. Component scripting is handled separately and can be accessed from the Component menubar or by right clicking on the component.
