Today's Tasks​

  1. Optimising "ALS_StepEngine"

Optimising "ALS_StepEngine"​

Notes:​

  • RaiseLevelInCIP ..FC contains references to "T001_Steps".LevelRaise.Step[x], where x is an integer index
  • SWFlush ..FB contains references to "T001_Steps".SWFlush.Step[x], where x is an integer index

Blocks contain "T001_Step".ppppp.Step._xxxx​

FB's​
  • GeneralPhases
  • Empty
  • SteamBarriers
  • Maintenance
  • AerationSelect
  • AerationSIPSeq1
  • AerationSIPSeq2
  • AerationSIPSeq3
  • AerationProductCool
  • AerationProductXfer
  • AerationCIP
  • AirationShutdown
  • AerationBarrierCool
  • AerationSteamBarrier
  • _TempGuards
  • Agitation
  • CIP
  • Shutdown
  • SWFlush
  • XferInlet1
  • Sterilization
  • _OtherFaults
  • _TankPressure

In SCL

  • _LevelFaults
FC's​
  • OutMotors
  • Out_Ster_signals
  • Out_Filler_Signals_Gasti
  • Out_Filler_Signals_Ampak
  • OP_Signals
  • Aeration
  • Out_Aeration_Signals
  • CopyOutput
  • FIC505
  • General
  • Out_Valves
  • GeneralHMIHandling
  • Agitspeed
  • PIC430
  • LIC525
  • PumpUnitSpeed
  • EndVclSteps
  • FillEmptySteps
  • CIPFlipSteps
  • CIPISBSteps
  • RaiseLevelInCIP
  • SterProdISB
  • MixOutletSteps
  • PIC420

UDT Updates​

To enable the en-mass update of actual block parameters, all the current compile errors were temporarily "commented-out" with the following phase Commented Out to Compile . This was to allow the commented out sections of code in a project search.

Version control interface​

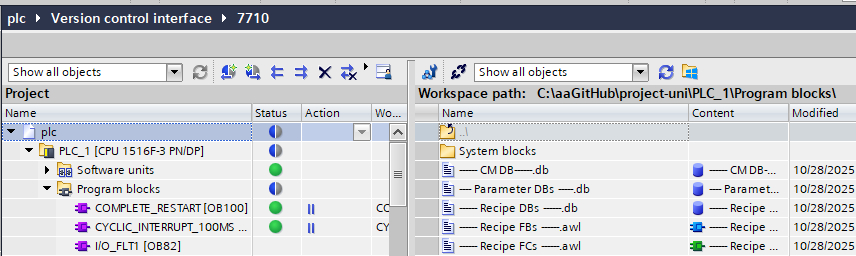

Once there were no compile errors source code of all "PLC data types", "PLC tags","programs blocks","Software units" and "Technology objects" was generated by employing the Version control interface. vci.png

The source code files were then opened in JetBrains Intellij Ideal Ultimate, where the appropriate UDT files were edited . These are shown below;

_USR_Shutdown​

TYPE "_USR_ShutDown"
VERSION : 0.1
   STRUCT
      "_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[500..504] of Bool := [TRUE];
   END_STRUCT;

END_TYPE

  • Program blocks find/replaced
Comments

Comments are not contained in the source code of the UDT.

_USR_Sterilization​


TYPE "_USR_Sterilization"
VERSION : 0.2
   STRUCT
       "_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[100..119] of Bool := [TRUE];
   END_STRUCT;
   BEGIN
END_TYPE
  • Program blocks find/replaced

_USR_XferInlet1​


TYPE "_USR_XferInlet1"
VERSION : 0.1
   STRUCT
     "_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[200..222] of Bool := [TRUE];
   END_STRUCT;

END_TYPE
  • Program blocks find/replaced

_USR_EndVCL​


TYPE "_USR_EndVCL"
VERSION : 0.1
   STRUCT
     "_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[300..309] of Bool := [TRUE];
   END_STRUCT;

END_TYPE
  • Program blocks find/replaced

_USR_CIP​


TYPE "_USR_CIP"
VERSION : 0.1
   STRUCT
     "_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[600..630] of Bool := [TRUE];
   END_STRUCT;

END_TYPE
  • Program blocks find/replaced

_USR_Filling​


TYPE "_USR_Filling"
VERSION : 0.1
   STRUCT
       "_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[1000..1101] of Bool := [TRUE];
   END_STRUCT;

END_TYPE
  • Program blocks find/replaced

_USR_Agitation​


TYPE "_USR_Agitation"
VERSION : 0.1
   STRUCT
       "_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[3000..3004] of Bool := [TRUE];
   END_STRUCT;

END_TYPE
  • Program blocks find/replaced

_USR_CIPflip​


TYPE "_USR_CIPflip"
VERSION : 0.1
STRUCT
"_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[700..724] of Bool := [TRUE];
END_STRUCT;

END_TYPE
  • Program blocks find/replaced

_USR_ISBProdSter​


TYPE "_USR_ISBProdSter"
VERSION : 0.1
STRUCT
"_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[1800..1814] of Bool := [TRUE];
END_STRUCT;

END_TYPE
  • Program blocks find/replaced

_USR_ISBCIP​


TYPE "_USR_ISBCIP"
VERSION : 0.1
STRUCT
"_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[800..803] of Bool := [TRUE];
END_STRUCT;

END_TYPE
  • Program blocks find/replaced

_USR_MixOutlet​


TYPE "_USR_MixOutlet"
VERSION : 0.1
   STRUCT
      "_" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[1700..1703] of Bool := [TRUE];
   END_STRUCT;

END_TYPE
  • Program blocks find/replaced

Updating actual formal parameters​

All usage of the modified UDT symbolic structure was then updated by employing the project wide "Find/Replace" feature of the Intellij IDE.

The following is an example, for the MixOulet steps, shows the regex patterns used to update the MixOutlet steps actual parameters, in FBD/LAD blocks, across the project.

The Find regex pattern​

<Symbol>
 <Component Name="T001_Steps"/>
 <Component Name="MixOutlet"/>
 <Component Name="Step"/>
 <Component Name="_(\d{1,})"/>
</Symbol>
The Replace regex pattern​

<Symbol>
  <Component Name="T001_Steps"/>
  <Component Name="MixOutlet"/>
  <Component Name="Step"/>
  <Component Name="_"/>
  <Access Scope="LiteralConstant">
    <Constant>
      <ConstantType>DInt</ConstantType>
      <ConstantValue>$1</ConstantValue>
    </Constant>
  </Access>
</Component>
    </Symbol>

The above patterns were adjusted for each top level tag in the T001_Steps Datablock.

Since the number usage of Step bits in SCL blocks were minimal these were manually updated.

Importing source code.​

After modification were complete in the source code these were imported and synchronized back into TIA via the VCI.

Subsequent rebuild highlighted errors where the ALS_StepEngine block call required updating and the actual parameter for the Steps formal parameter of the ALS_StepEngine function block required re-referencing to the boolean array within the given UDT.

ALS_StepEngine "block call update" required​

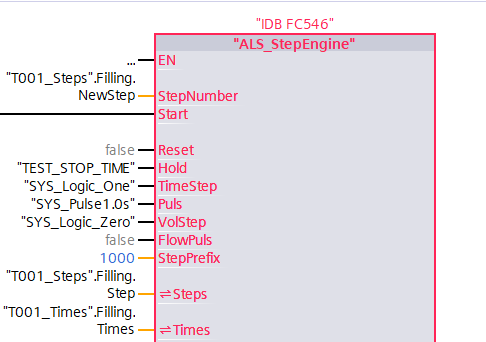

ALS_StepEngine actual parameter required update (before)​

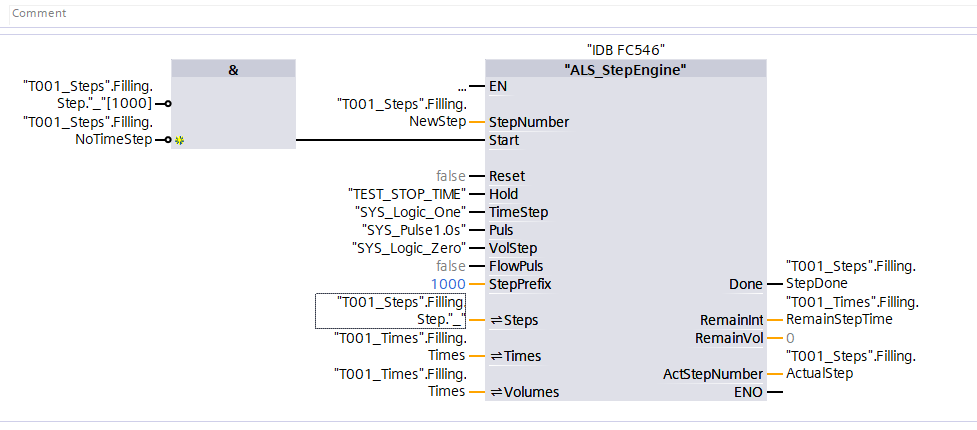

ALS_StepEngine actual parameter required update (after)​
