Today's Tasks​

  1. Make note of connections in NetPro ✅
  2. Could firewalls be employed to improve security
  3. Ready PLC Project for Migration

NetPro Connections​

Detailed in repo issue 11 - mfa required.

Security in OT Networks​

Meet the Siemens Scalance SC-600​


  1. SCALANCE SC-600 CLI V3.1
  2. SCALANCE SC-600 - Declaration of conformity to IEC 62443-4-2
  3. Industrial Ethernet security SCALANCE SC-600
  4. Understanding and Using Firewall of Industrial Security Appliance SCALANCE S

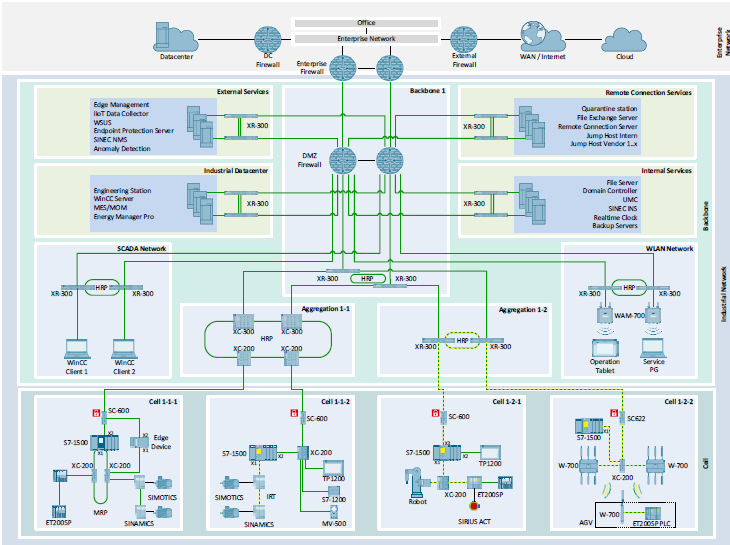

Network Concepts​


  1. Network concepts for Industrial Automation Networks
  2. Central User Management with "User Management Component"(UMC)

Summary​

In a word, YES. The article Network concepts for Industrial Automation Networks provided some perfect info and deserves re-reading!!

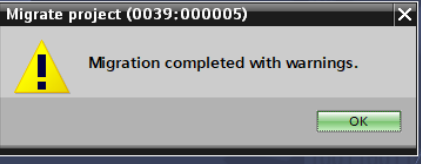

Ready PLC project for migration​


Not what I wanted to see... But, hey... Could be worse!!

Unable to employ slice access?​

The Issue In FB169 Network 2,The address is not occupied by a tag.

    T     %LW0

In the block interface LW0 is part of a UDT typed variable. Therefore, been trying to use "slice" access, that is;

    T varName.W0

However, the IDE is adding a % so the attempted symbolic address becomes absolute. Doh!

In researching the problem came across this Difference between standard and optimized block access

Created an issue to Change the S7-300 CPU to S7-1500, which is capable of employing "Optimized Blocks", unlike S7-300/400 CPU's

For another day...​

Continuous Integration with TIA Portal​

Application Example: CI with TIA Portal
